Water Ripple Shader (2024)
Software : Unity
This effect is achieved using 2D Water Algorithm along with Unity's RenderTexture and CommandBuffer.
​
Key Features :
-
Ripple surface follows the target object in world space
-
No additional camera setup is required; the CommandBuffer handles everything in a closed system. Just one script component is attached to the water mesh
-
The system renders the target object's cross-section as the ripple source, eliminating the need for any mesh collider

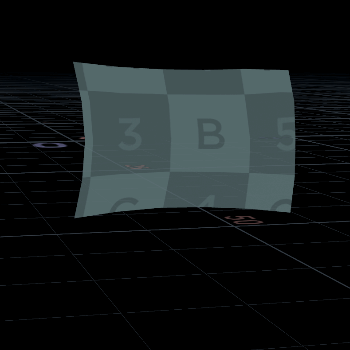

Flag Animation (2024)
Software : Unity, Houdini
I'm working to improve the old flag animation in Airship: Kingdoms Adrift to make it more dynamic. The animation now reflects wind strength and direction.
​
To achieve this, I use a combination of blendshape and vertex animation shaders to simulate the effect of a flag fluttering in the wind. It's also a great opportunity to try out Houdini's Vellum simulation to get believable flag folding blendshape data.
Lookup Texture(LUT) Skybox (2024)
Software : Unity
One of my biggest sins during the implementation of the Skybox for Airship: Kingdoms Adrift was the performance cost. Raymarching shaders in real-time are unnecessarily expensive for games. After conducting research, I found the paper "A Scalable and Production-Ready Sky and Atmosphere Rendering Technique" and an example implementation on ShaderToy. These resources were invaluable in helping me implementing the shader into Unity.
​
Key Features :
-
Physically Corrected Lighting Calculation, with adjustable atmospheric parameters
-
High Fidelity Graphics, achieved with relatively low rendering cost
-
Old skybox took 7308 microseconds to render​
-
LUT skybox took 760 microseconds to render
-
(RenderDoc @2560x1440, Geforce GTX 1080)
-
-
3 LUTs Updating at Different Rates:
-
Earth Setup LUT and Transmittance LUT (most expensive): Updates when atmospheric parameters change
-
Sky-View LUT (moderately expensive): Updates when the time of day changes
-
Aerial Perspective LUT (very cheap): Updates every frame
-
